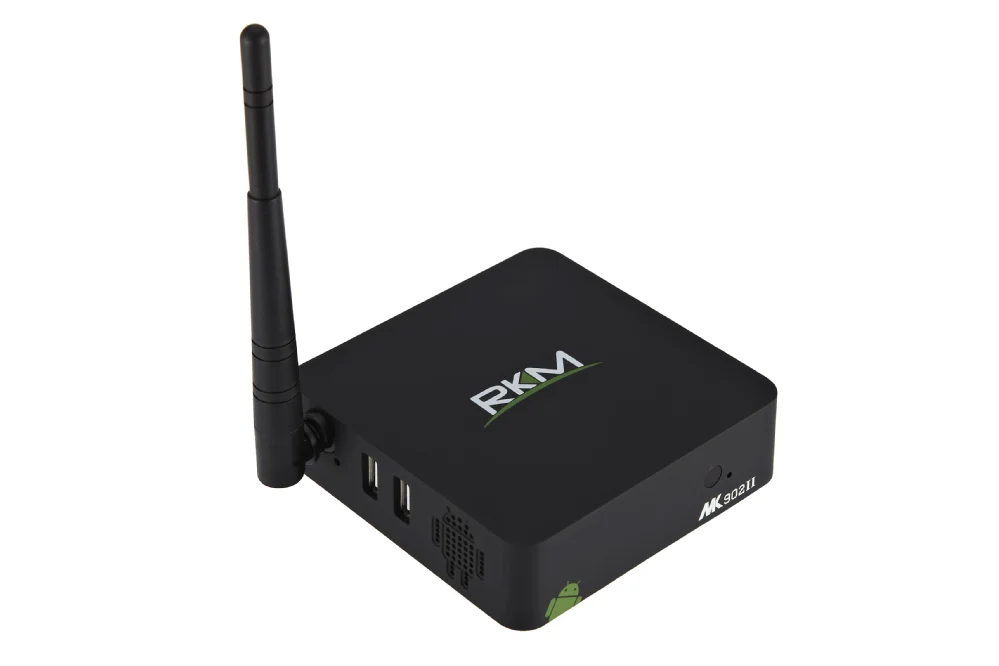

MK902II LE (Linux Edition) Quad Core A17 Ubuntu Linux Mini PC - 16GB Flash Storage

The MK902II LE is the first mini PC based on the powerful RK3288 quad core processor to run a full Linux desktop operating system. It connects to a HDMI TV/Monitor, keyboard and mouse and provides a low cost workstation which can be used for just about anything!

This device is many times faster than our previous generation hardware, it boots in a few seconds and really packs a punch due to the quad core A17 architecture, fast onboard storage and improved design.

This micro sized device will fit behind a monitor/TV or will sit neatly on any desk taking up next to no space and will deliver a desktop class performance at a fraction of a cost of conventional PC products.

The MK902II has excellent connectivity with its fast onboard Wifi, Gigabit Ethernet, 4 x USB ports, Micro SD Card Slot and IR sensor.

MK902II LE is ideal for a wide range of applications;

• Replacing large power hungry and expensive desktop computers in business environments
• Running desktop applications eg. web browsing, creating documents, spreadsheets etc etc
• Digital signage applications
• Web Kiosks
• Thin Clients
• Server (runs full Ubuntu to allow complete configuration for all server needs)
• Fast development platform for users involved in embedded solutions and researching fast ARM platforms. This device will compile a native ARM kernel in around 10 minutes. (Try doing that on a Raspberry Pi!)
• As a client for many other applications and tasks, freeing up the need for using a large bulky dedicated desktop machine for the job in hand

This platform also offers the following advantages;

• Boots up in seconds (around 6 seconds from cold)
• Very low power consumption (2-5 Watts under normal load)
• Tiny form factor
• Completely solid state (no moving parts)
• Runs industry standard Linux distribution Ubuntu (Xubuntu)
• Easy to deploy (firmware can be flashed by PC)
• Low cost compared to WinTel boxes
• No software licenses to worry about

Specifications

CPU - Rockchip RK3288 Quad Core (28nm Cortex-A17 Quad Core upto 1.8GHz)

GPU - ARM Mali-T764 GPU, supports OpenGL ES1.1/2.0/3.0, Open VG1.1, OpenCL, DirectX11

Memory - 2GB (Dual channel 64 bit DRAM controller)

Internal Storage - 16GB Internal eMMC solid state dsik with Xubuntu 14.04 preinstalled

External Storage - Micro SD Card Slot

System - Ubuntu Linux (Xubuntu 14.10 LTS) Full Ubuntu OS with access to many apps from Ubuntu software center.

WiFi  - 802.11 b/g/n

Ethernet - RJ45 Supports Gigabit Ethernet.

Video - HDMI, full HD 1920x1080p / Analogue AV output

Audio - HDMI or External USB Sound Device (not included), 3.5mm AV output, optical output

USB - 4 x Full Size USB Host.

Other Hardware Features - IR sensor supporting soft startup/shutdown, volume control in Linux, Easily accessible recovery switch.

Power - 5V USB ±2 Amps

Package Contents

MK902II LE 16GB (Linux Edition)

IR Remote control

USB - USB cable for easy firmware installation/updates/recoveries.

HDMI - HDMI Lead

Mains USB Power supply with country specific adapter.
